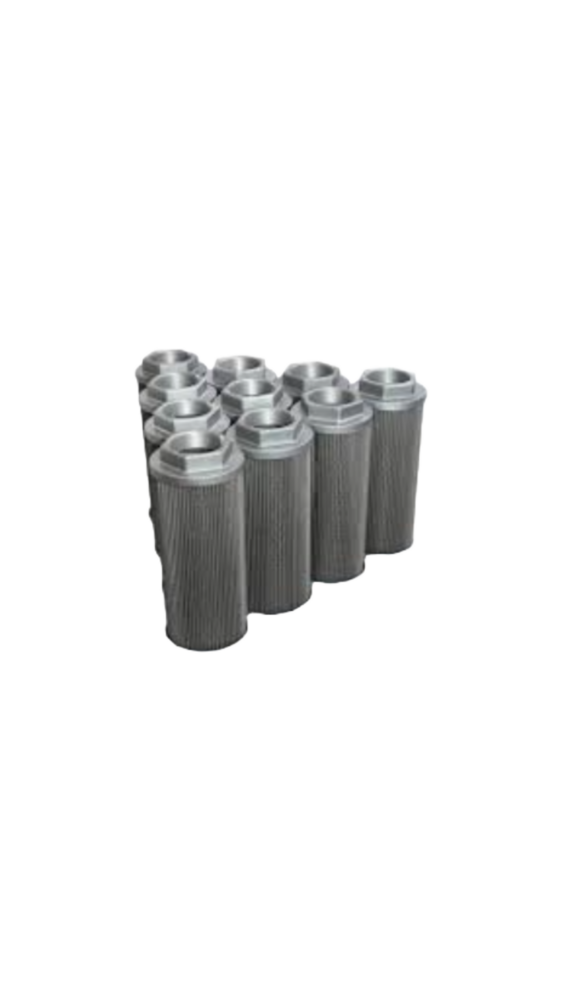

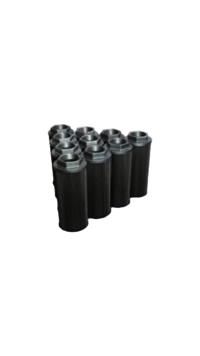

Hydraulic Suction Strainer

Hydraulic Suction Strainer Specification

Color
Grey

Weight
0.10 to 1.25 Kilograms (kg) Kilograms (kg)

Size
1/4 inch to 3 inch

Product Type
Suction Strainer

Condition
New

Material
High-grade steel or stainless steel

Shape
Cylinder

Feature
Flow rates ranging from 8 LPM to 600 LPM, depending on the model

Hydraulic Suction Strainer Trade Information

Minimum Order Quantity
1 Piece

Supply Ability
5000 Pieces Per Month

Delivery Time
5 Days

Packaging Details
Each unit Properly Packed in a cardboard box

Main Domestic Market
All India

About Hydraulic Suction Strainer

We are offering our clients a superior extent of Suction Strainer as a leading manufacturer, exporter and supplier in this domain. Offered strainer is designed for installation into suction lines of pumps. This suction strainer is perfect for filtering fluids and defend the equipment from getting clogged and prevent break-down. Can be used over and over again after cleaning with a suitable cleaner solution, this Suction Strainer s highly admired by our clients for its compact design and durability.

Key Features

Quick open design
Durable construction
Large filter area
Improved operational efficiency

Application Areas:

Suitable for low flow rate application

Technical Specifications: (AND MANY MORE SIZES AS PER REQUIREMENTS)

Model No.	Flow LPM	Thread IN BSP. A	Overall Length B	DIA. Nut Cap C	Nut A/F	Screen Area (SQ. CMS)	WT (Kgs.)
SC3-002	8	1/4 Inch	90	46	24	187	0.1
SC3-003	12	3/8 Inch	90	46	24	187	0.1
SC3-005	20	1/2 Inch	105	46	30	226	0.1
SC3-007	28	3/4 Inch	109	64	35	406	0.2
SC3-010	40	1 Inch	139	64	46	542	0.2
SC3-015	60	1-1/4 Inch	139	86	51	929	0.3
SC3-020	80	1-1/2 Inch	168	86	60	1161	0.35
SC3-030	120	1-1/2 Inch	200	86	60	1393	0.4
